The Joesco DefenseThe Joesco Defense Bastion Technology:

JOESCO Military barrier Wire mesh box speciation:

Wire Diameter: 4.0mm, 5.0mm

Spring Wire Diameter: 4.0mm (4 pieces/cell, 6 pieces/cell)

Mesh Hole: 76.2mm×76.2mm,75mm×75mm

Defense Bastion Dimension:

4'6''*3'6''*32' (1*4+1*5=9 cells/set)

2'*2'*4' (2 cells/set)

3'3''*3'3''*32' (2*5=10 cells/set)

3'3''*5'*32' (2*5=10 cells/set)

2'*2'*10' (5 cells/set)

5'6''*2'*10' (5 cells/set)

7'3''*7'*90' (2*4+1*5=13 cells/set)

4'6''*4'*32' (1*4+1*5=9 cells/set)

Geotextile: In heavy duty non-woven polypropylene, normally 250g/m2,

Geotextile: Beige/brown color.

Bastion Packing: Normally packed by wooden pallet.



JOESCO Wire mesh box payment: 30% TT in advance and the balance be paid before load. Bastion Technology:

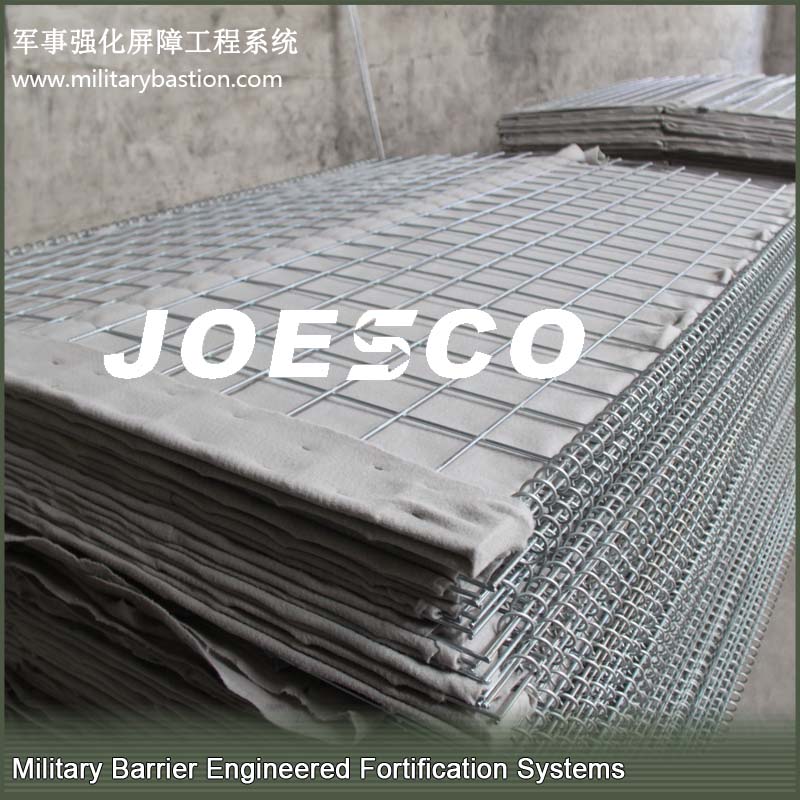

The MIL unit Joesco barrier is a multi-cellular barrier system manufactured from welded zinc-aluminum coated steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.



With Fabric Joesco Wire Mesh Box Unit Size:

Joesco Defense Bastion MIL 1, 1.37 X 1.06 X 5.3m (5 unit)

Joesco Defense Bastion MIL 2, 0.61X 0.61 X 1.22m (2 unit)

Joesco Defense Bastion MIL 3, 1.0X 1.0 X 5.0 m (5 unit)

Joesco Defense Bastion MIL 4, 1.0X 1.52 X 5.0 m (5 unit)

Joesco Defense Bastion MIL 5, 0.61X 0.61 X 3.05 m (5 unit)

Joesco Defense Bastion MIL 6, 1.68X 0.61 X 3.05 m (5 unit)

Joesco Defense Bastion MIL 7, 2.21X 2.13 X 10.65 m (5 unit)

Joesco Defense Bastion MIL 8, 1.37X 1.22 X 5.0 m (5 unit)

Joesco Defense Bastion MIL 9, 1.0X 0.76 X 4.56 m (6 unit)

Joesco Defense Bastion MIL 10, 2.21X 1.52 X 7.6 m (5 unit)

Joesco Defense Bastion MIL 12, 2.13X 1.06 X 5.3 m (5 unit)

Joesco Defense Bastion MIL 1.9, 2.74X 1.06 X 3.18 m (5 unit)



JOESCO Wire mesh box speciation:

JOESCO Wire mesh box Hole shape: Square

JOESCO Wire mesh box Square Hole size:3''×3'' (76.2mm×76.2mm)

JOESCO Wire mesh box Wire Mesh diameter:4-5mm

JOESCO Wire mesh box Connnecting Join pin&Spring wire:3mm or 4mm.

JOESCO Wire mesh box Wire mesh Material: steel wire.

JOESCO Wire mesh box Wire mesh surface treatment: Al-zinc coated or Hot dipped galvanized

JOESCO Wire mesh box Geotextile Fabric:0.08'' 3mm thickness heavy duty Non-woven polypropylene.

JOESCO Wire mesh box Geotextile Color:Gray,Sand Color,Military Color or according to your request.

JOESCO Wire mesh box Joesco basket Packing: Wrapped with shrink film or packed in wooden pallet.

JOESCO Wire mesh box delivery: we can finish one 40'HQ within one week.

JOESCO Wire mesh box payment: 30% TT in advance and the balance be paid before load.
